Sweep 1

This tool allow us to generate a surface through profile curves and a following a surface edge (called rail).

Select first the rail (the opened curve in this case) and then the profiles in order.

Dragging the dots will allow you to dynamically change the seam, and clicking on the arrow to flip the curve.

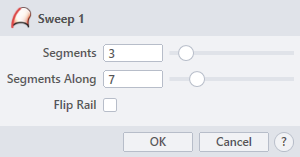

Interface

Parameters

› Segments

Sets the number of divisions along the profiles.

› Segments Along

Sets the number of divisions along the central axis.

› Flip Rail

Flips the surface edge (rail).

Command Validation

1. Click button to validate the command and apply the new geometry on the scene.

2. Click button to cancel the command, and refuse to apply geometry on the scene.

3. Click button to open the help information of the command, in case you need more detailed information about the tool being used.
