Ellipsoid

It creates a sphere where you can choose between quad or polygonal. You can define the radius and the segments.

Quad and Polygonal Ellipsoid.

Dragging the handles will allow you to change dynamically the dimensions, and double-clicking to set the exact value.

Moving the disk will change the position of the center of creation.

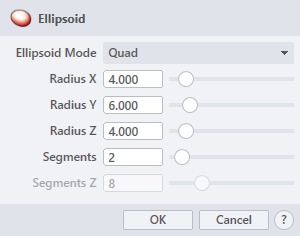

Interface

Parameters

› Ellipsoid Mode

Sets the mode of the ellipsoid, you can choose between Quad and Polygonal.

Quad Parameters

› Radius X

Sets the radius of the ellipsoid in X axis.

› Radius Y

Sets the radius of the ellipsoid in Y axis.

› Radius Z

Sets the radius of the ellipsoid in Z axis.

› Segments

Sets the level of subdivisions for the ellipsoid.

Polygonal Parameters

› Radius X

Sets the radius of the ellipsoid in X axis.

› Radius Y

Sets the radius of the ellipsoid in Y axis.

› Radius Z

Sets the radius of the ellipsoid in Z axis.

› Segments

Sets the number of polygonal divisions along the XY plane.

› Segments Z

Sets the number of divisions along the Z axis.

Command Validation

1. Click button to validate the command and apply the new geometry on the scene.

2. Click button to cancel the command, and refuse to apply geometry on the scene.

3. Click button to open the help information of the command, in case you need more detailed information about the tool being used.
