Box

It creates a box where you can define the size in X, Y and Z axes, and the segments in all three axes.

Dragging the handles will allow you to change dynamically the dimensions, and double-clicking to set the exact value.

Moving the disk will change the position of the center of creation.

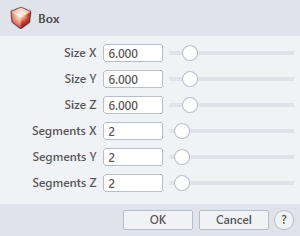

Interface

Parameters

› Size X

Sets the dimension in X axis.

› Size Y

Sets the dimension in Y axis.

› Size Z

Sets the dimension in Z axis.

› Segments X

Sets the number of divisions along X axis.

› Segments Y

Sets the number of divisions along Y axis.

› Segments Z

Sets the number of divisions along Z axis.

Command Validation

1. Click button to validate the command and apply the new geometry on the scene.

2. Click button to cancel the command, and refuse to apply geometry on the scene.

3. Click button to open the help information of the command, in case you need more detailed information about the tool being used.
